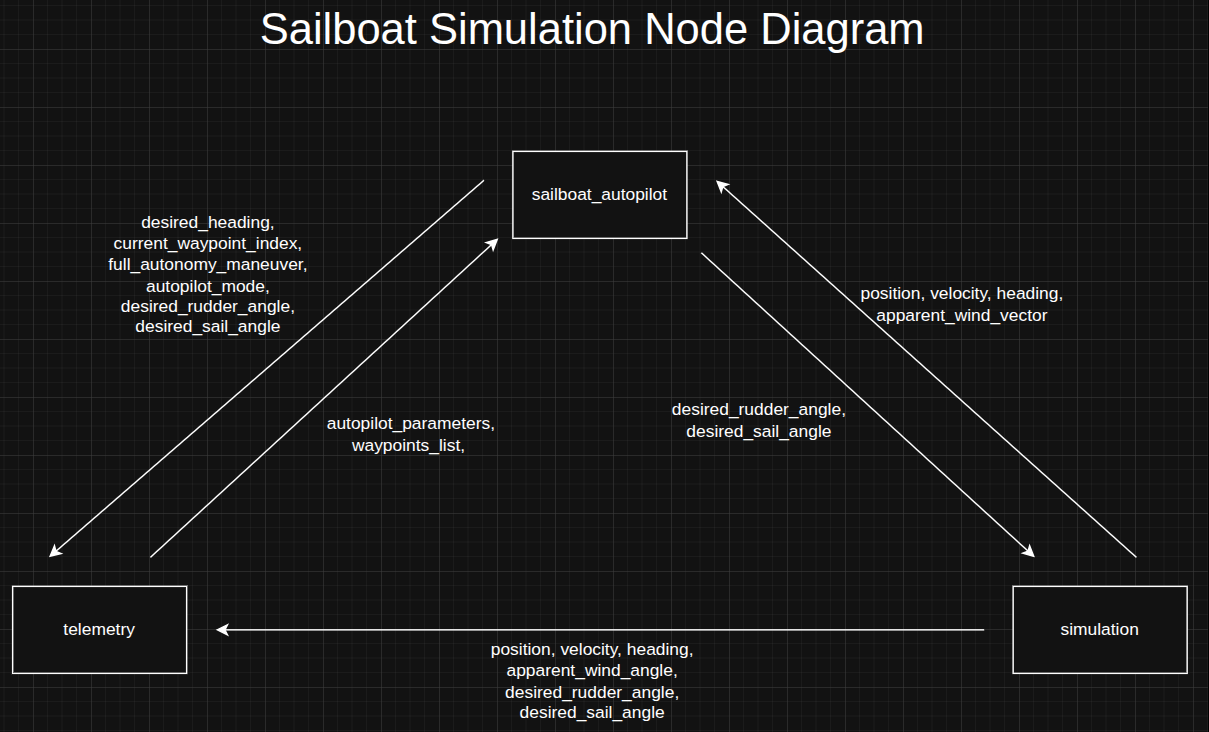

How Nodes Interact on the Sailboat Simulation

ROS2 Sailboat Simulation Node Diagram

The following is the source file if you want to make edits to the diagram: Sailboat Simulation Node Diagram Source File Download

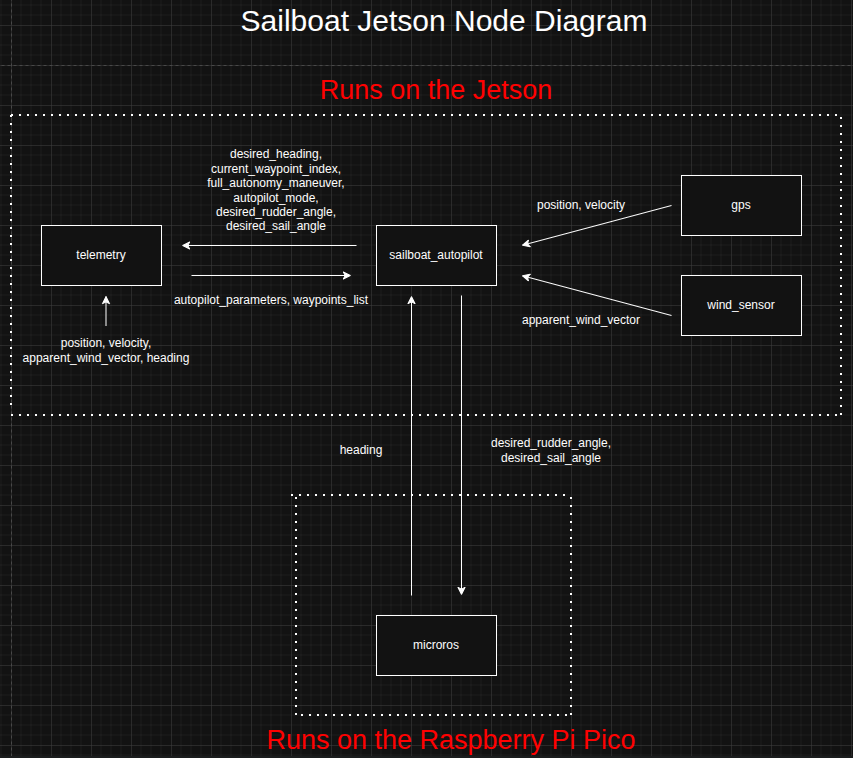

How Nodes Interact on the Sailboat on Real Hardware

ROS2 Sailboat Jetson Node Diagram

The following is the source file if you want to make edits to the diagram: Sailboat on Real Hardware Node Diagram Source File Download

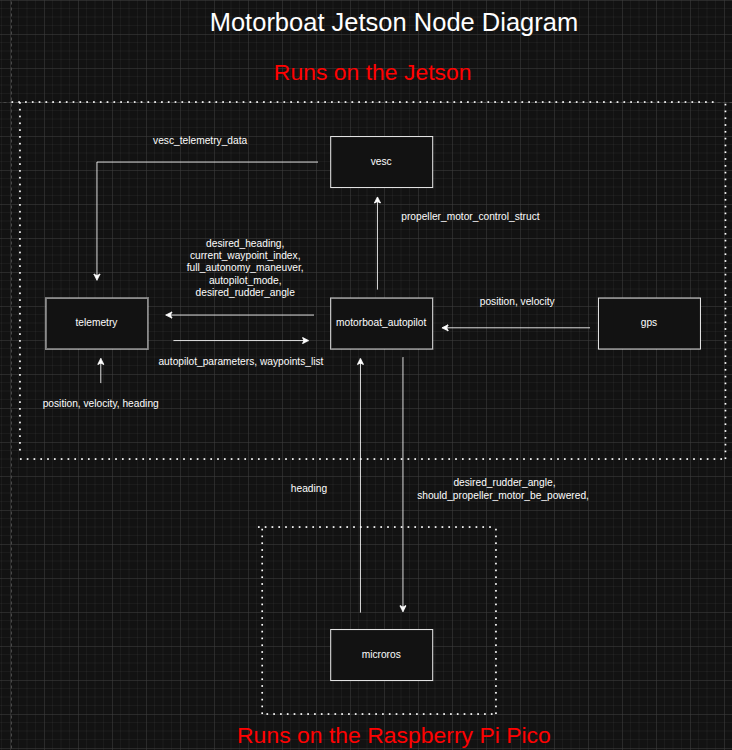

How Nodes Interact on the Motorboat on Real Hardware

ROS2 Motorboat Jetson Node Diagram

The following is the source file if you want to make edits to the diagram: Motorboat on Real Hardware Node Diagram Source File Download
