Flow of Information Between Groundstation and Autopilot Node

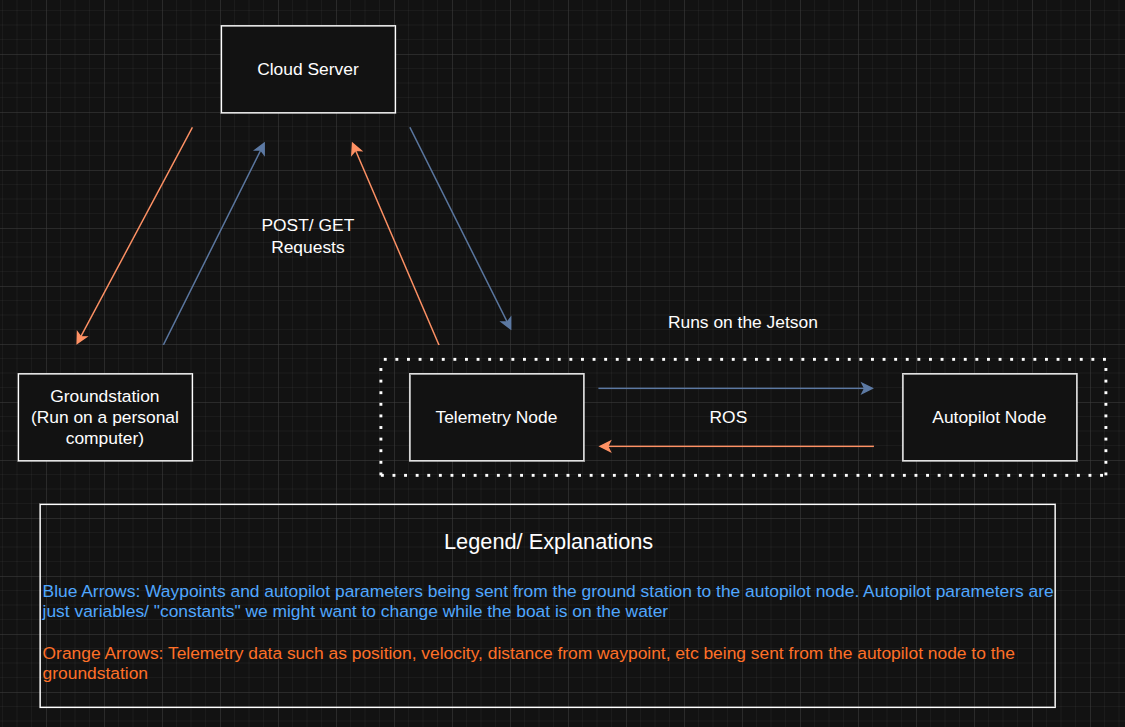

Diagram of Groundstation Telemetry

The following is the source file if you want to make edits to the diagram: Flow of Telemetry Information Between Groundstation and Autopilot Node Source File Download
